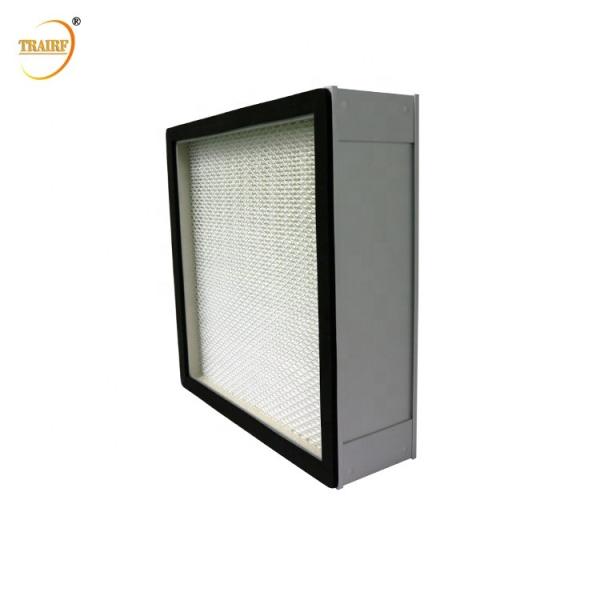

Fine Dust Filtration 99.99% H14 HEPA Flow Hood Filter Mushroom Growing

Mushroom Hepa Filter H14 for Laminar Air Flow Hood

Product Description

Material and performance
Product Name	Laminar flow hood hepa filter H14
Frame Material	Aluminum alloy ,galvanized steel,stainless steel 301
Filter media	High- quality Fiberglass filter paper
Partition	Hot melt adhesive
Sealant	Polyurethane adhesive
Separator	Paper/ Aluminum foil
Max. temperature	85°C
Max. humidity	80%RH

HEPA H14 Filter
Hepa air filters unit for cleanroom, is the terminal device in purified air supply system. It aims to provide the air with desirable static pressure before passing through HEPA filter, to enable uniform air-out.
The replacemrnt hepa requiring filed leak detection is provided with DOP dust and leakage detection mouth, and differential pressure detection mouth and lower damper based on customer’s requirements.

Specifications:

Model	Dimensions (mm)	Airflow(m³/h)	Initial Resistance(Pa)	Efficiency(%)	Dust Capacity(g)
TR-WGB-1	61061050	700	≤220 or ≤140 HV	≥99.99	450
TR-WGB-2	91561050	1000	≤220 or ≤140 HV	≥99.99	680
TR-WGB-3	122061050	1400	≤220 or ≤140 HV	≥99.99	900
TR-WGB-4	61061069	1000	≤220 or ≤140 HV	≥99.99	560
TR-WGB-5	91561069	1500	≤220 or ≤140 HV	≥99.99	840
TR-WGB-6	122061069	2000	≤220 or ≤140 HV	≥99.99	1120
TR-WGB-7	61061080	1200	≤220 or ≤140 HV	≥99.99	650
TR-WGB-8	61061090	1400	≤220 or ≤140 HV	≥99.99	750
TR-WGB-9	610610100	1600	≤220 or ≤140 HV	≥99.99	850
TR-WGB-10	117057069	1800	≤220 or ≤140 HV	≥99.99	1000
TR-WGB-11	117057080	2200	≤220 or ≤140 HV	≥99.99	1250
TR-WGB-12	122061080	2500	≤220 or ≤140 HV	≥99.99	1300
TR-WGB-13	122061090	2800	≤220 or ≤140 HV	≥99.99	1500
TR-WGB-14	1220610100	3200	≤220 or ≤140 HV	≥99.99	1700

* Customizable Size

HEPA filters are designed to arrest very fine particles (dust) effectively.
Dust hepa filter sheet is widely used in clean rooms. Besides, hepa air purifier(air cleaner) also suitable for ventilation system and havc system.

There are a number of sealing modes, such as dry-type sealing, wet-type sealing, dry & wet double sealing negative pressure type, wet-type double sealing negative pressure type available for customer’s option. The case material may be plastic-spry steel plate, S304 stainless steel plate, aluminum alloy section, etc.

Product Advantage

Fine Dust Filtration 99.99% H14 HEPA Flow Hood Filter Mushroom Growing

Details:
1.Strong aluminum alloy frame to protect whole structure.
2.Hard-wearing rubber to prevent scratches on the frame.
3.Perfect adhesive pouring technology to ensure no air leak.
4.Fiber Glass Filter Paper:high efficiency media, high dust holding capacity
and low resistance.

Applications:
HEPA air filter suits for all industrial filtration workplaces.
For example,Laminar Air Flow Hood, Biomedical,Vehicles,Airlines,Heating, air conditioning,respiratory protection, clean rooms, industrial processes, and building ventilation systems, Whole House Air Cleaning Systems, Electronic Air Filters for High-End Residential & Commercial Facilities.

Package details:
1.FCL Order Filter packaged by 5 layers carton case.
2.LCL order filter packaged by wooden case.
3. According to customer's requirements.
