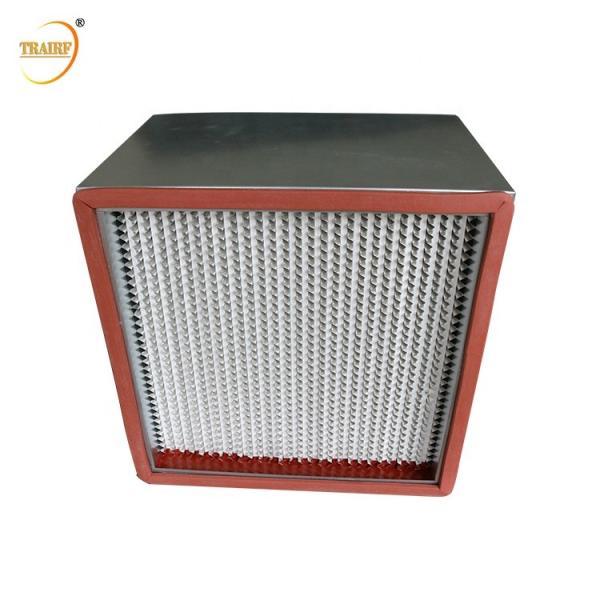

99.99% H13 Deep Pleated High Temp Laminar Flow HEPA Filter
High temperature HEPA filter is an air filter that can withstand
temperatures up to 250°C. It uses stainless steel as the frame and
glass fiber filter paper as the filter material. Widely used in the
spraying industry, oven, chemical, ultrasonic industry and other
high temperature purification sites.
The Deep Pleated design uses an aluminum separator as a divider
that divides the filter media and creates a airflow path tunnel.
Specification:
Model | Dimensions(mm) | Airflow(m³/h) | Initial Resistance(Pa) | Efficiency(%)(0.3um) | Dust Capacity(g) |
TR-NGW-Z1 | 484*484*120 | 390 | ≤220 | ≥ 99.99 | 230 |
TR-NGW-Z2 | 610*610*120 | 620 | ≤220 | ≥ 99.99 | 370 |
TR-NGW-Z3 | 915*610*120 | 930 | ≤220 | ≥ 99.99 | 560 |
TR-NGW-Z4 | 1220*610*120 | 1500 | ≤220 | ≥ 99.99 | 740 |
TR-NGW-Z5 | 484*484*150 | 530 | ≤220 | ≥ 99.99 | 320 |
TR-NGW-Z6 | 610*610*150 | 1000 | ≤220 | ≥ 99.99 | 510 |
TR-NGW-Z7 | 915*610*150 | 1500 | ≤220 | ≥ 99.99 | 770 |
TR-NGW-Z8 | 1220*610*150 | 2000 | ≤220 | ≥ 99.99 | 1020 |
TR-NGW-Z9 | 484*484*220 | 1000 | ≤220 | ≥ 99.99 | 600 |
TR-NGW-Z10 | 610*610*220 | 1600 | ≤220 | ≥ 99.99 | 920 |
TR-NGW-Z11 | 915*610*220 | 2300 | ≤220 | ≥ 99.99 | 1340 |
TR-NGW-Z12 | 1220*610*220 | 3000 | ≤220 | ≥ 99.99 | 1750 |
Note: Customization is available. |
Cleanliness level
This is similar to the normal HEPA Filter, which achieves an
efficiency rating of H13 99.97% @ 0.3micron and H14 99.995% @ 0.3
micron. Different efficiencies can be achieved using different
fiberglass materials. Each High temperature HEPA filter is tested
by smoke to ensure that the filter is not leaking. Packed in
plastic bags to prevent long-term storage from being oxidized. A
single filter is packed in carton and then secured with wooden
boxes to ensure safety during transport.
Dimension
- Thickness 150mm or 292mm ( 6 / 12 inch )
- 610*610*292 / 150mm ( 24*24*12 / 6 inch )
- 305*610*292 / 150 mm ( 12*24*12 / 6 inch )
Temperature
- Max temperature resistance 250°C, 300°C, 350°C,400°C
Efficiency
- H10, H11, H12, H13, H14, U15 EN:1822
Features:
1.High efficiency ,high working temperature,low resistance,good
uniformity winds,Low initial pressure drop,large dust holding
capacity ,environmental friendly and long service life,air filter
manufacturer
2.Efficiency:95%0.3um,99%0.3um,99.9% 0.3um ,99,99% 0.3um
99.999%0.3um ,99.9995%0.12um
3.Sealant:Red Silica Gel(250~280 ) Ceramic Glue(350~400 )
4.Filter media:fiberglass paper H10,H11,H12,H13,H14,U15
