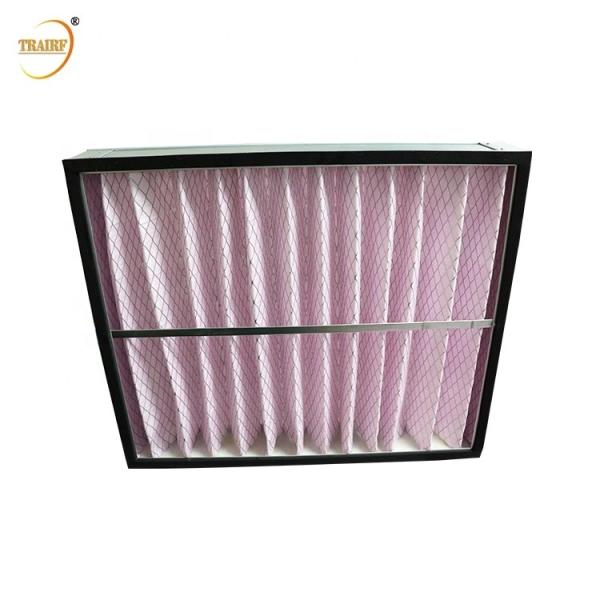

Aluminium Alloy Frame Clean Room AC Pre HVAC Air Filter 60Pa For Air Conditioner

Clean Room AC Pre Air Filter For Air Conditioner

Primary Efficient Clean Room AC Pre Air Filter for Air Conditioner is made of high quality polyester synthetic fiber or filter cotton. It has advantages of the large dust holding capacity, low pressure loss in the initial period and lager air flow,aluminum mesh grease filter.

Product Materials

Outer Frame: Strong aluminum alloy frame to protect whole structure.

Filter Media: Good quality filters cotton to collect dust effectively.
Product Design: Well-organized metal support to prevent filter media fallin

* High dust loading capacity
* Low pressure drop
* Large air flow
* Efficiency: F7
* Low cost ,washable pre filter
* Easy installation
* Long service life

1.The moisture-proof: 100%;
2.Heat resistance: 80℃;
3.The rank of the filtration:G2,G3,G4
4.AHU air filter,Air Conditioning pleated Industrial Air Filters, polyester primary fiber air filter

Widely used in air conditioning system intermediate filtration;
Clean room fresh air system, etcs.

Product Feature

1. The filtering material in synthetic fiber, polyester fiber fleeciness structure, large capacity of dust, the thickness of thin, can clean for many times, reusable, low cost. Effectively prolong the life of effectively filter in the backend

2. Lightweight board structure, low resistance, early

3. The filter can choose galvanized mesh, filter, stainless steel wire mesh, spray network, strengthen the intensity of filter

4. The casing outside the optional aluminum frame, stainless steel, galvanized frame frame, further improve the hardness of the filter, in the work environment will not occur deformation, rupture, and twisted.

item	value
Applicable Industries	AHU
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Warranty of core components	Not Available
Core Components	filter media
Condition	New
Efficiency	80%
Construction	Panel Filter
Porosity	1 um
Place of Origin	China
Province	Sichuan
Brand Name	TRAIRF
Dimension(LWH)	59549546mm
Weight	1KG
Warranty	6 Months
Product name	AHU Parts F7 Furnace Air Filter for Air Conditioning Units
Application	AHU, Air Conditioning Units
Filter Type	Metal Wire Meshed Air Filter
Frame Material	Aluminium Alloy
Filter Media	Synthetic fiber wire meshed
Color	Pink & White
Efficiency Grade	F7
Feature	ahu dust air filter sheet
OEM	Available

Product Parameter

Model	Dimensions(mm)	Rated air flow(m³/h)	Initial resistance(Pa)	Efficiency(class)
TR-CX-Z1	29529546	800	25Pa	G2 G3 G4
TR-CX-Z2	49549546	1300
TR-CX-Z3	49549546	2200
TR-CX-Z4	59229546	1600
TR-CX-Z5	59549546	2700
TR-CX-Z6	59559546	3200

* Customizable Size

Matters needing attention for air filters:

1. After cleaning the filter cloth, if the initial resistance value of the filter is lower than the initial resistance value of the filter installed for the first time, it should not be used and replaced in time;The filter should be replaced even if the pressure difference is greater than the initial value after two times of cleaning.

2. When taking the HEPA filter, the case should be carried upside down to make the HEPA filter land smoothly.

3. After cleaning the filter, check whether it is damaged or not, and replace it in time. Do not rub, machine wash or shake dry.

4. In the cleaning process, the primary and middle effect filter should not be confused, and should be numbered in order to distinguish.

5. Each air purification system should have a set of spare filters to be replaced in time when cleaning.
