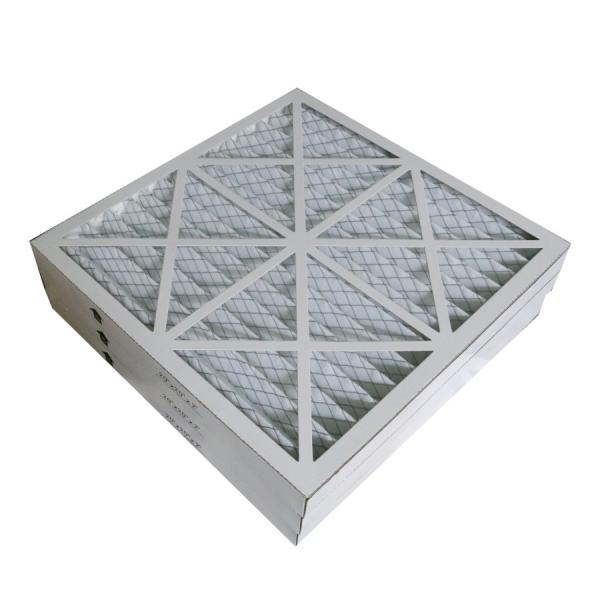

24*24*2 Customized Cardboard Panel Pleat G4 Air Filter For HVAC Or
Ventilation
Cardboard panel pleat G4 air filter is mainly suitable for
filtering particles with a diameter of 5μm. With domestic high
quality non-woven fabric, glass fiber and synthetic fiber made of
special blend or imported polyester fiber as filter material, wedge
folding shape to increase the filtering area, with high strength
cardboard frame, made of plate structure.
Advangages:
* Light weight, economic cost
* Disposable products, environmentally.
* Low resistance, large filter area and air volume
Applications:
1. Pre-filtration for clean-room,general Industry Ventilation
system
2. Waste the factory and process the coarse filter net for
collecting dust
3. Automobile industry,residential,air purifying, Electronics
industry, pharmaceuticals, semiconductor industry
4. Central Air Conditioner System, dust-free workshop factory
waste, processing dust collection and other related industries of
primary filtration.
Model | Outside Dimensions(mm) | Rated air flow(m³/h) | Initial Resistance(Pa) | Efficiency(class) | Model of filter media |
TR-CX-Z1 | 295*295*20 | 800/1000 | 25Pa | 40% Weight | G3 | Early effect filter |
TR-CX-Z2 | 495*295*20 | 1300/1600 |
TR-CX-Z3 | 495*495*20 | 2200/2800 |
TR-CX-Z4 | 595*295*20 | 1600/2000 |
TR-CX-Z5 | 595*495*20 | 2700/3300 |
TR-CX-Z6 | 595*595*20 | 3200/4000 |
* Customizable Size
Installation precautions
Before the installation of the air filter, the clean room should be cleaned and wiped. If there is
dust accumulation in the air conditioning system, it should be
cleaned and wiped again to meet the cleaning requirements. If the filter is installed in the sandwich or roof, the sandwich or roof
should also be cleaned and wiped. The frame for installing the
primary filter should be flat. The permissible deviation of the
flatness of each filter mounting frame is not more than 1mm. And to
keep the filter frame on the arrow and air flow direction is the
same, when the vertical installation, filter paper crease should be
perpendicular to the ground.
