Washable Pleated Synthetic Fiber Pre Air Filter For Ventilation System

Product Categories

Sichuan Huajie Purification Equipment Co., Ltd.

Contact Now

Washable Pleated Synthetic Fiber Pre Air Filter For Ventilation System

Ask Lasest Price
Brand Name :	TRAIRF
Price :	$9.25/pieces 1-49 pieces
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000 Pieces per 2-30days
Delivery Time :	2-30days

Add to Cart

Product Details
Company Profile

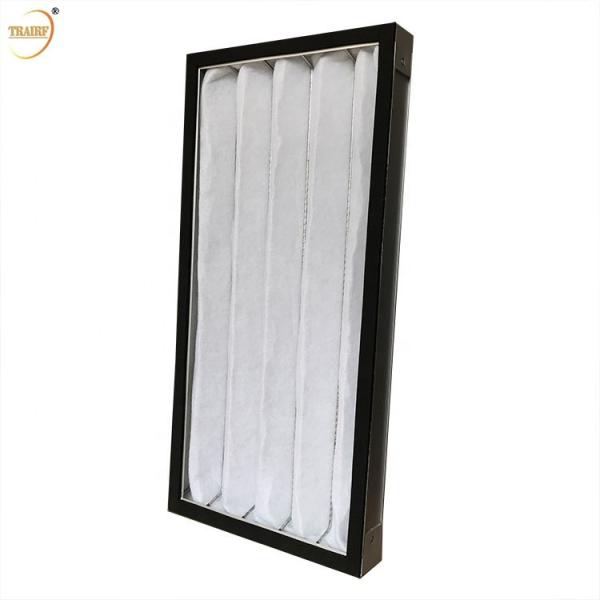

Washable Pleated Synthetic Fiber Pre Air Filter For Ventilation System

The primary filter is suitable for the primary filtration of air conditioning system. It is mainly used for filtering dust particles above 5μm. The primary filter has three styles: plate type, folding type and bag type. The outer frame materials include paper frame, aluminum frame and galvanized iron frame. The filter materials include non-woven fabric, nylon mesh, activated carbon filter material, metal hole mesh, etc., and the protective net has double-sided spray wire mesh and double-sided galvanized wire mesh.

Product Materials, features, specifications

Description: Pre Filtration air filter is made of polyester fiber in white color, it can be washed repeatedly serval times to save cost, also with lower resistance pressure and strong flame retartant feature and resilience.
The advantages of synthetic fiber pleated panel filter are that:
1.Low resistance
2.Large filter area
3.Large dust holding capacity
4.Washable filter media, cost economical

Applicable to air conditioning system adopts the primary filtration

item	value
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Warranty of core components	Not Available
Condition	New
Efficiency	50%
Construction	Panel Filter
Porosity	5 Micron
Place of Origin	China
Province	Sichuan
Brand Name	TRAIRF
Dimension(LWH)	Customized Size
Weight	1KG
Warranty	Unavailable
Color	White
Filter Material	Polyester Fiber
Medium Material	Pre Filtration Cotton
Frame	Aluminium alloy, Galvanized plate, stainless steel
Filter Media Type	Pleated
Initial Psressure	25 Pa
Rated air flow	800-3200m³/h

Product Parameters

Model	Outside Dimensions(mm)	Rated Air Flow(m³/h)	Initial Resistance(Pa)	Efficiency(class)		Model of filter media
TR-CX-P1	295×295×10/20 12”×12” ×1/2”/1”	800	25Pa-50Pa	40% weight	G2 G3 G4	Nylon nets Early effect filter cotton Corrugated aluminium nets
TR-CX-P2	495×295×10/20 20”×12” ×1/2”/1”	1300
TR-CX-P3	495×495×10/20 20”×20” ×1/2”/1”	2200
TR-CX-P4	595×295×10/20 24”×12” ×1/2”/1”	1600
TR-CX-P5	595×495×10/20 24”×20” ×1/2”/1”	2700
TR-CX-P6	595×595×10/20 24”×24” ×1/2”/1”	3200

* Customizable Size

Washable Pleated Synthetic Fiber Pre Air Filter For Ventilation System

FAQ 1. who are we?
We are based in Sichuan, China, start from 2013,sell to Africa(15.00%),North America(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),Mid East(8.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Domestic Market(5.00%),Oceania(5.00%),Eastern Asia(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
HEPA Filter,Pre Filter,Medium Pocket Filter,HVAC Air Filter,FFU Fan Filter Unit
4. why should you buy from us not from other suppliers?
(1. Turth Factory Supply you with Factory Price

(2. 7-10 days Short Delivery Time base on Strong Producing Strength

(3.With more than 10 Year OEM Service Experience in Air Filter Field

(4. Products Quality are Guaranteed with ISO9001 & CE Certificate
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,German,Arabic,French,Russian,Korean,Italian
