ABS Plastic Frame 0.5 Micron V Bank Filter For HVAC System

Ask Lasest Price
Brand Name :	TRAIRF
Price :	$62.35/pieces 1-49 pieces
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000 Pieces per 2-30days
Delivery Time :	2-30days

Add to Cart

Product Details
Company Profile

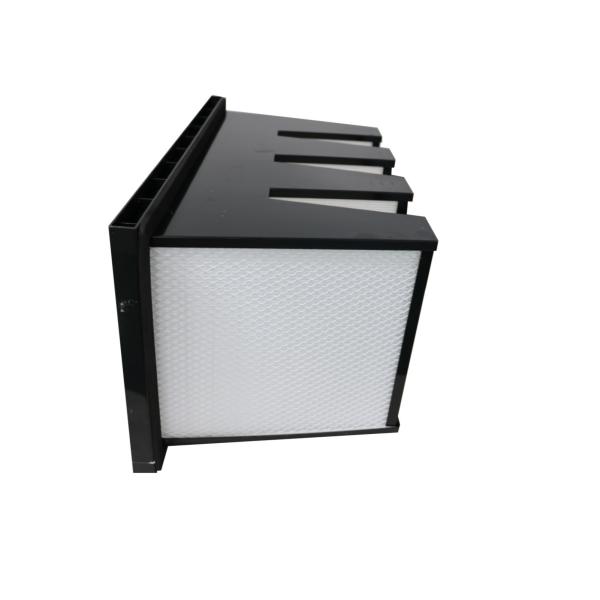

ABS Plastic Frame 0.5 Micron V Bank Filter For HVAC System

W Type And Efficient V Bank Filter For Hvac System

Product details

V-shaped air filter adopts ultra-fine glass fiber filter paper, by combining multiple diaphragm filter and strictly seals made, the efficiency of covering F7 to H13, has big filter area, low resistance, long service life (up to traditional diaphragm filter 2-3 times), the characteristics of the wide range of application. The filter filtration principle is to use adsorption method, is to get clean air can reach the standard, at the same time for different particle sizes of dust particles in the air to capture, adsorption, make the air quality improvement, chemical filter in addition to the dust adsorption mainly can also adsorption odor, usually used in biological pharmacy, hospital, airport terminals, living environment, etc.

Product Materials, features, specifications

Filter Material: Glass fiber filter
Separator: Hot melt glue
External frame: Plastic box

The advantage of W type and efficient air filter is that:
* Long service life

* Large air flow
* Low resistance
* Large dust capacity
* Good sealing performance
* Firm structure, good performance under turbulent air flow
1. Compact structure, small occupation space, suitable for compact central air conditioning system;
2. The effective filtration area is large, so the resistance is low and the service life is long;
3. The frame of the air dust collection series is made of galvanized steel plate, stainless steel plate or plastic frame, with
good stability;
4. The use of ultrafine, moisture-proof glass fiber filter material, so that the filter in high temperature, humidity and other
harsh environment can operate normally, bring stable filtration efficiency.
The use of W-type sub-high efficiency filter:
Suitable for high air volume air conditioning ventilation system of medium and advanced filtration
Widely applied in electronics, optics, semiconductors, coating, chemical,cosmetics, pharmacy, hospitals, and automobile industries.
Used in biopharmaceutical, airport terminal, living environment and other places.

item	value
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Warranty of core components	Not Available
Condition	New
Efficiency	95%-99%
Construction	Box Filter
Porosity	0.5 Micron
Place of Origin	China
Province	Sichuan
Brand Name	TRAIRF
Dimension(LWH)	customization
Weight	15KG
Warranty	Unavailable
Construction	V Bank Air Filter
Efficiency	95%, F8- F9
After-sales Service Provide	Online support
Filter Media	Mini pleats glassfiber or PP
Frame	ABS Plastic
Rate Airflow(m3/h)	1600
Use highest temperature	80°C
Use highest humidity	80%

Product Parameters

W Shape Type Compact Air Filter parameters have model, outside dimensions, rated air flow, initial resistance and efficiency. The size of the product can be determined according to customer requirements. There are standard size and non-standard size, in order to meet a certain number of requirements on the customer can request customization.

Model	Outside Dimensions(mm)	Rated Air Flow(m³/h)	Initial Resistance(Pa)	Efficiency (class)	Filter material
TR-WGX-1	287×287×292	80	≤125	95(F8)/99(F9)	Polyester Glass fiber
TR-WGX-2	490×287×292	1200	≤125	95(F8)/99(F9)
TR-WGX-3	490×490×292	2000	≤125	95(F8)/99(F9)
TR-WGX-4	592×490×292	2000	≤125	95(F8)/99(F9)
TR-WGX-5	592×490×292	2700	≤125	95(F8)/99(F9)
TR-WGX-6	592×287×292	1600	≤125	95(F8)/99(F9)
TR-WGX-7	592×592×292	2400	≤125	95(F8)/99(F9)
TR-WGX-8	592×592×292	3200	≤125	95(F8)/99(F9)

* Customizable Size

ABS Plastic Frame 0.5 Micron V Bank Filter For HVAC System

Pack details:PE bag inside, carton case outside

According to Customers' requirement
Shipping: Sample order:1-2days
