GI Frame Type 0.5 Micron PP Fiber HEPA Air Filters OEM ODM

Product Categories

Sichuan Huajie Purification Equipment Co., Ltd.

Contact Now

GI Frame Type 0.5 Micron PP Fiber HEPA Air Filters OEM ODM

Ask Lasest Price
Brand Name :	TRAIRF
Supply Ability :	5000 Piece/Pieces per Month
Price :	$5.00 - $50.00/pieces
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :	2-30days

Add to Cart

Product Details
Company Profile

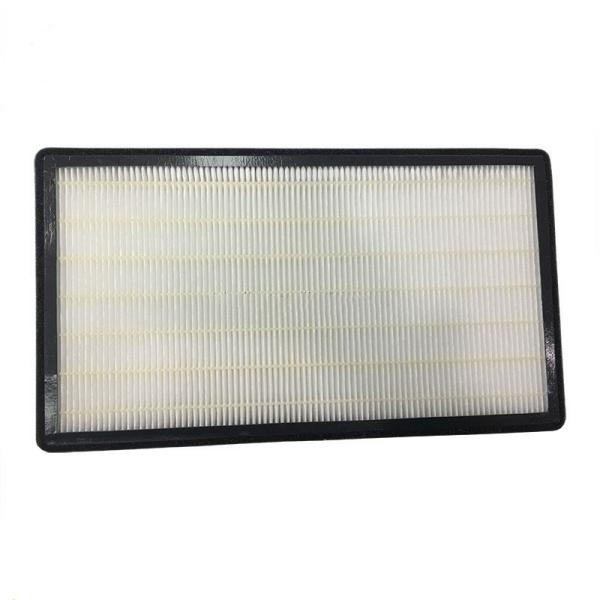

GI Frame Type 0.5 Micron PP Fiber HEPA Air Filters OEM ODM

0.5 Micron HEPA Air Filters

Application:
HEPA filter is widely used in the terminal filtration of the civil or industrial cleaner places requiring a higher degree of cleanliness such as electronics, semiconductor, precision machinery, pharmaceuticals, hospitals, food etc.

Specifications:
1.Low pressure drop
2.Large dust holding capacity
3.Aluminum/GI/wooden frame type
4.Efficiency:99.99%

Feature:
1.Unique seamless sealing technology, sealing effect better, more durable, not easy to leak
2.The double sides of filter material are with protecting metal wire net
3.Can provide 50 mm, 69 mm, 90 mm and other various thickness
4.By laser scanning count MPPS efficiency:95%-99.999995%(EN1882)
5.Filtration grade:H11-H14,U15,U16(EN1882)

Materials:

Frame	Extruded aluminium,stainless steel, aluminum alloy, galvanized plate
Filter Media	Glassfiber
Protect Net	Aluminium mesh
Sealant	Polyurethane
Gasket	EVA

Parameters:

Model	Dimensions(mm)	Airflow(m³/h)	Initial Resistance(Pa)	Efficiency(%)	Dust Capacity(g)
TR-WGB-1	61061050	700	≤220 or ≤140 HV	≥ 99.99	450
TR-WGB-2	91561050	1000	≤220 or ≤140 HV	≥ 99.99	680
TR-WGB-3	122061050	1400	≤220 or ≤140 HV	≥ 99.99	900
TR-WGB-4	61061069	1000	≤220 or ≤140 HV	≥ 99.99	560
TR-WGB-5	91561069	1500	≤220 or ≤140 HV	≥ 99.99	840
TR-WGB-6	122061069	2000	≤220 or ≤140 HV	≥ 99.99	1120
TR-WGB-7	61061080	120	≤220 or ≤140 HV	≥ 99.99	650
TR-WGB-8	61061090	1400	≤220 or ≤140 HV	≥ 99.99	750
TR-WGB-9	610610100	1600	≤220 or ≤140 HV	≥ 99.99	850
TR-WGB-10	117057069	1800	≤220 or ≤140 HV	≥ 99.99	1000
TR-WGB-11	117057080	2200	≤220 or ≤140 HV	≥ 99.99	1250
TR-WGB-12	122061080	2500	≤220 or ≤140 HV	≥ 99.99	1300
TR-WGB-13	122061090	2800	≤220 or ≤140 HV	≥ 99.99	1500
TR-WGB-14	1220610100	3200	≤220 or ≤140 HV	≥ 99.99	1700

* Customizable Size

Delivery
There are four type shipping ways you can choose:
1. By Sea.
2.By Air.
3.By Express( DHL, TNT, FedEx, UPS, EMS)
4.By Train (China Railway Express, the line starts in Chengdu and travels through Kazakhstan, Russia and Belarus to end in Lodz )
