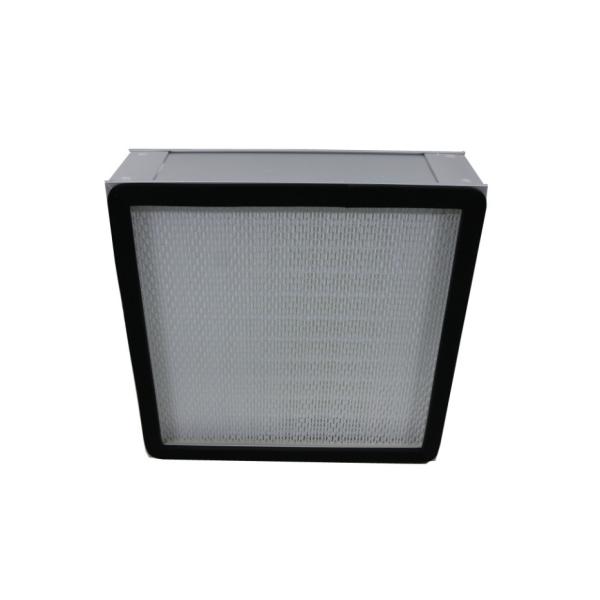

OEM 0.3um Deep Pleat HEPA Box Filter For HVAC Air Conditioning

Deep-pleat Hepa Box Filter With Aluminum Frame Pleat Hepa Air Filter For HVAC Air Conditioning

The high efficiency filter without separator mainly adopts thermal sol as separator, which is convenient for mechanization production. The diaphragm free high efficiency filter has the advantages of small volume, light weight, easy installation, stable efficiency and uniform wind speed. At present, the large number of filters required by clean workshop and places with high clean requirements mostly use the diaphragm free structure and diaphragm free high efficiency filter.

Product Materials, features, specifications

External frame: Aluminum alloy frame

Separator: Hot melt adhesive

Filter media: Glassfiber filter

Use the highest temperature: 80℃

Use the highest humidity: 80%

The advantage of Aluminum Frame Hepa Filter is that:

* High efficiency

* Low resistance
* Light weight
* Convenient installation
* Fine uniformity of air velocity
Applicable to electronic, pharmaceutical, food, air purification ends

item	value
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Warranty of core components	Not Available
Condition	New
Efficiency	99.99%
Construction	Panel Filter
Porosity	0.3um
Place of Origin	China
Province	Sichuan
Brand Name	TRAIRF
Dimension(LWH)	45045050mm
Weight	2KG
Warranty	Unavailable
Frame	Aluminum alloy
Function	Collect Dust
Feature	Long Service Life, High Dust Holding Capacity
OEM	Customized Service Available
Type	Panel Hepa Air Filter
Sealant	Polyamine glue
Filter media	hot melt adhesive
Gasket	EVA
Maximum service temperature	80℃
Maximum humidity	80%

Product Parameters

Deep Pleated Glass Fiber H13 H14 Hepa Filter parameters have model, outside dimensions, rated air flow, initial resistance and efficiency. The size of the product can be determined according to customer requirements. There are standard size and non-standard size, in order to meet a certain number of requirements on the customer can request customization.

Model	Outside Dimensions(mm)	Rated air flow(m³/h)	Initial resistance(Pa)	Efficiency(class)
TR-WGB-1	61064050	700	≤220 or ≤140(HV)	≥99.99
TR-WGB-2	91561050	1000	≤220 or ≤140(HV)	≥99.99
TR-WGB-3	122061050	1400	≤220 or ≤140(HV)	≥99.99
TR-WGB-4	61061069	1000	≤220 or ≤140(HV)	≥99.99
TR-WGB-5	91561069	1500	≤220 or ≤140(HV)	≥99.99
TR-WGB-6	120061069	2000	≤220 or ≤140(HV)	≥99.99
TR-WGB-7	61061080	1200	≤220 or ≤140(HV)	≥99.99
TR-WGB-8	61061090	1400	≤220 or ≤140(HV)	≥99.99
TR-WGB-9	610610100	1600	≤220 or ≤140(HV)	≥99.99
TR-WGB-10	117057069	1800	≤220 or ≤140(HV)	≥99.99
TR-WGB-11	117057080	2200	≤220 or ≤140(HV)	≥99.99
TR-WGB-12	120061080	2500	≤220 or ≤140(HV)	≥99.99
TR-WGB-13	120061090	2800	≤220 or ≤140(HV)	≥99.99
TR-WGB-14	1200610100	3200	≤220 or ≤140(HV)	≥99.99

*Customizable Size

OEM 0.3um Deep Pleat HEPA Box Filter For HVAC Air Conditioning

Packaging Details: PE Bag inside, Carton Case outside

According to Customers' requirement
Shipping: Sample order:1-2days
