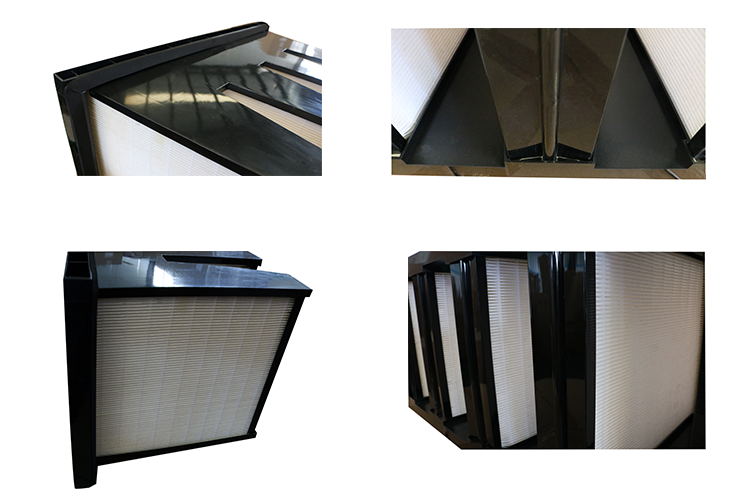

Pig Farm Merv14 Air Filter 24x12x12 Mini-Pleat V Bank Filter
Introduction:
V-bank Air Filter is made of high strength glass fiber with gradual
density. Low compressibility keeps its shape and makes fiber
purified air effectively. It can absorb the excess particles during
paint-spraying operation and reduce pollution to the environment,
make the exhausted air more environmental-friendly and inner
circulating air more clean.
Material and performance
Frame | ABS Plastic frame |
Filter medium | Micro fiberglass media (mini pleated) |
Max. temperature | 85°C |
Max. humidity | 80%RH |
Characteristic:
1. Micro Fiberglass filter media
2. Large air flow
3. Low resistance
4. High dust holding capacity
5. Long service life
Specifications:
| Model | Dimensions(mm) | Airflow(m³/h) | Initial Resistance(Pa) | Efficiency(%) |
| TR-WGB-1 | 287*287*292 | 800 | ≤125 | 95(F8)/99(F9) |
| TR-WGB-2 | 490*287*292 | 1200 | ≤125 | 95(F8)/99(F9) |
| TR-WGB-3 | 490*490*292 | 2000 | ≤125 | 95(F8)/99(F9) |
| TR-WGB-4 | 592*490*292 | 2000 | ≤125 | 95(F8)/99(F9) |
| TR-WGB-5 | 592*490*292 | 2700 | ≤125 | 95(F8)/99(F9) |
| TR-WGB-6 | 592*287*292 | 1600 | ≤125 | 95(F8)/99(F9) |
| TR-WGB-7 | 592*592*292 | 2400 | ≤125 | 95(F8)/99(F9) |
| TR-WGB-8 | 592*592*292 | 3200 | ≤125 | 95(F8)/99(F9) |
* Customizable Size
Features:
1. Superfine glass fiber media
Superfine glass fiber as the filter material, so as to ensure the
long-term stability of the filter and filter efficiency
2. Big filtration area
With our 4V box filter will reach a very big filtration area
suitable for large air volumes. This means a long useful lifetime
with low operation costs The frames are made of halogen-free
plastic. The filter ele- ment is free of metal parts.USES superfine
glass fiber as the filter material, so as to ensure the long-term
stability of the filter and filter efficiency
3. Frame
The frames are made of halogen-free plastic. The filter ele- ment
is free of metal parts. Abs Plastic Frame Combined V Bank Filter
99.99% For 0.3 Micron.
4. Environmental protection and disposal
Our filters can be incinerated completely environmental friendly in
disposal plants
5. Own test equipment
Applications:
1. Clean rooms.
2. Food processing industry.
3. Pharmaceutical Processing.
4. Genetic & Biological research.
5. Biohazard Atmosphere.
6. Laminar Flow Workstations.
7. Bio Safe Hoods (Biological Safety Cabinets).
8. Hospital Operating Theaters & Intensive care units.
9. Electronic Industry.
