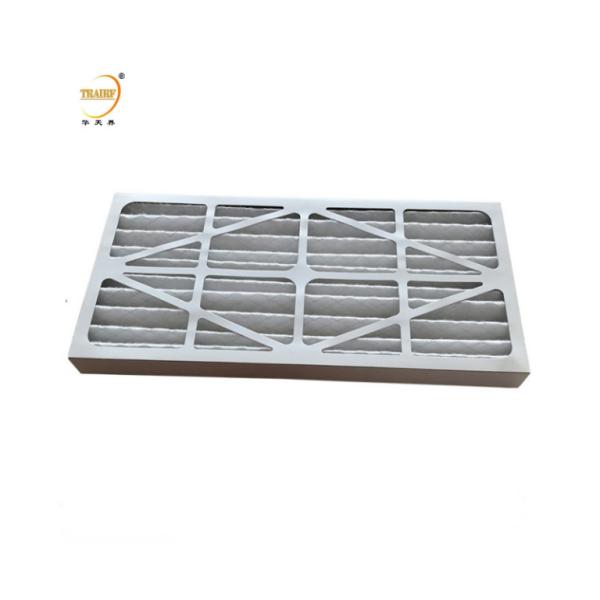

G4 Frame Industrial Cardboard Air Pre Filter Pleated Panel Air
Filter
Product Description
Paper air conditioning filters is mainly suitable for filtering
particles with a diameter of 5μm. With domestic high quality
non-woven fabric, glass fiber and synthetic fiber made of special
blend or imported polyester fiber as filter material, wedge folding
shape to increase the filtering area, with high strength cardboard
frame, made of plate structure. It is especially suitable for air
conditioning system,hvac system,ahu,ventilation system,home air
filtration system , air conditioner with air purifier ,etc, widely
applied to filtration of high quality surface painting with the
feature of high arrestance, high efficiency in absorbing extra
particle during the course of painting, making air pressure more
equally.
Features
1. Frame: there are Moisture resistance cardboard; Aluminum alloy;
Galvanized plate frame for your choice.
2. Welded wire mesh protect filter media not destroied during
transportation or working .
3. Z-line pleated surface increased filtration area.
4. Low resistance, large dust holding capacity.
Product Parameters
| Model | Outside Dimensions(mm) | Rated air flow(m³/h) | Initial Resistance(Pa) | Efficiency(class) | Model of filter media |
| TR-CX-P1 | 295×295×10/20mm 12”×12” ×1/2”/1” | 800m³/h | 25-50Pa | 80-95% weight | G2 G3 G4 | Nylon nets Early effect filter cotton Corrugated aluminium nets |
| TR-CX-P2 | 495×295×10/20mm 20”×12” ×1/2”/1” | 1300m³/h |
| TR-CX-P3 | 495×495×10/20mm 20”×20” ×1/2”/1” | 2200m³/h |
| TR-CX-P4 | 595×295×10/20mm 24”×12” ×1/2”/1” | 1600m³/h |
| TR-CX-P5 | 595×495×10/20mm 24”×20” ×1/2”/1” | 2700m³/h |
| TR-CX-P6 | 595×595×10/20mm 24”×24” ×1/2”/1” | 3200m³/h |
*Customizable Size
1.Type: Disposable panel cardboard frame filter
2.Filter Media: Mixture of cotton and synthetic fiber
3.Filter class: G3(EN779) MERV6( ASHRAE 52.2)
G4(EN779) MERV8( ASHRAE 52.2)
4.Recommended final pressure drop:250 Pa
5.Temperature: 70ºC maximum in continuous service
6. Fire Rating:UL900
7.Customized Accept , provide OEM service
Application
1. Clean rooms (suitable for use in multi layer filter filtration
system)
2. Food processing industry.
3. Pharmaceutical Processing.
4. Aerospace Engineering.
5. Genetic & Biological research.
6. Bio hazard Atmosphere.
7. Laminar Flow Workstations.
8. Bio Safe Hoods (Biological Safety Cabinets).
9. Hospital Operating Theaters & Intensive care units.
10. Spray Booth and Paint Room.
11. Electronic Industry.
FAQ
1. who are we?
We are based in Sichuan, China, start from 2013,sell to
Africa(15.00%),North America(10.00%),Southeast Asia(10.00%),Eastern
Europe(10.00%),South America(10.00%),Mid East(8.00%),South
Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central
America(5.00%),Western Europe(5.00%),Domestic
Market(5.00%),Oceania(5.00%),Eastern Asia(2.00%). There are total
about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
HEPA Filter,Pre Filter,Medium Pocket Filter,HVAC Air Filter,FFU Fan
Filter Unit
4. why should you buy from us not from other suppliers?
1. Turth Factory Supply you with Factory Price 2. 7-10 days Short
Delivery Time base on Strong Producing Strength 3.With more than 10
Year OEM Service Experience in Air Filter Field 4. Products Quality
are Guaranteed with ISO9001 & CE Certificate
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit
Card,PayPal,Western Union,Cash,Escrow;
Language
Spoken:English,Chinese,Spanish,Japanese,German,Arabic,French,Russian,Korean,Italian
