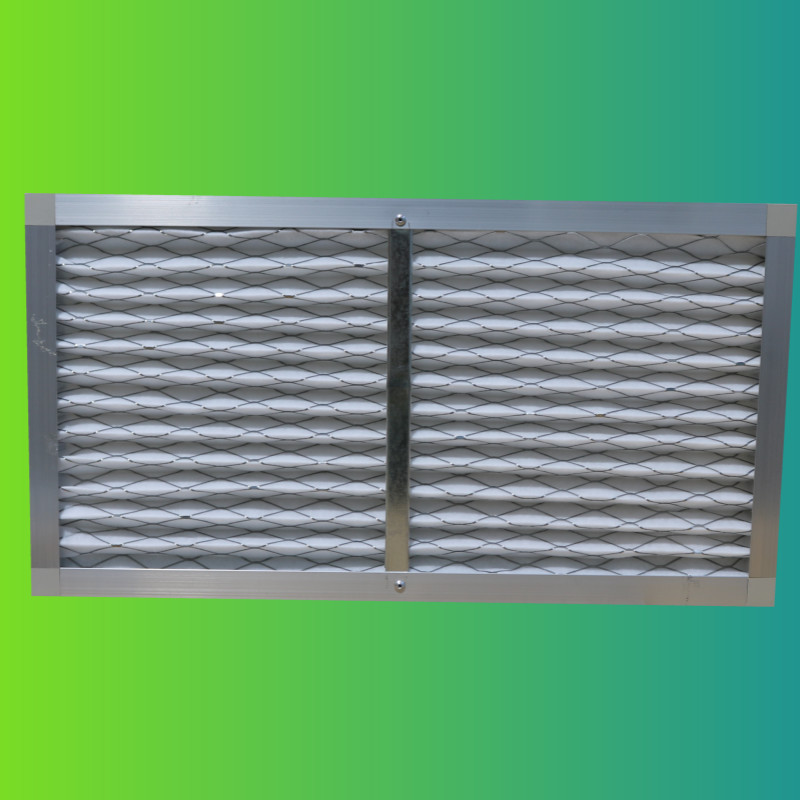

G4 230*430*10mm White Primary Efficiency Pre Air Filter For Air Conditioner
The primary filter is suitable for the primary filtration of air conditioning system. It is mainly used for filtering dust particles above 5μm. The primary filter has three styles: plate type, folding type and bag type. The outer frame materials include paper frame, aluminum frame and galvanized iron frame. The filter materials include non-woven fabric, nylon mesh, activated carbon filter material, metal hole mesh, etc., and the protective net has double-sided spray wire mesh and double-sided galvanized wire mesh.
Product Materials, features, specifications
Outer Frame: Strong aluminum alloy frame to protect whole structure.
Filter Media: Good quality filters cotton to collect dust effectively.
Product Design: Well-organized metal support to prevent filter media fallin
* High dust loading capacity
* Low pressure drop
* Large air flow
* Efficiency: G4
* Low cost ,washable pre filter
* Easy installation
* Long service life 1.The moisture-proof: 100%;
2.Heat resistance: 80ºC;
3.The rank of the filtration:G4-F9;
4.AHU air filter,Air Conditioning pleated Industrial Air Filters, polyester primary fiber air filter. Widely used in air conditioning system intermediate filtration;
Clean room fresh air system, etcs.
| item | value |
| Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Warranty of core components | 1 year |
| Condition | New |
| Efficiency | 40%-90% |
| Construction | Panel Filter |
| Porosity | 5 um |
| Place of Origin | China |
| Province | Sichuan |
| Brand Name | TRAIRF |
| Dimension(L*W*H) | 230*430*10mm |
| Weight | 1 KG |
| Warranty | 1 year |
| Color | White |
| Frame | Aluminum Alloy Frame |
| Filtration Grade | G1~G4 |
| Shape | Rectangle |
| Package | Carton Box |
Manufacturing technique
Product parameters
Pleated synthetic fiber pleated filter parameters are model, outside dimensions, rated air flow, initial resistance and efficiency. The size of the product can be determined according to customer requirements. There are standard size and non-standard size, in order to meet a certain number of requirements on the customer can request customization.
| Model | Outside dimensions(mm) | Ratde air flow(m³/h) | Initial resistance(Pa) | Efficiency(class) | Model of filter media |
| TR-CX-P1 | 295×295×10/20mm 12”×12” ×1/2”/1” | 800m³/h | 25-50Pa | 40% weight | G2 G3 G4 | Nylon nets Early effect filter cotton Corrugated aluminium nets |
| TR-CX-P2 | 495×295×10/20mm 20”×12” ×1/2”/1” | 1300m³/h |
| TR-CX-P3 | 495×495×10/20mm 20”×20” ×1/2”/1” | 2200m³/h |
| TR-CX-P4 | 595×295×10/20mm 24”×12” ×1/2”/1 | 1600m³/h |
| TR-CX-P5 | 595×495×10/20mm 24”×20” ×1/2”/1” | 2700m³/h |
| TR-CX-P6 | 595×595×10/20mm 24”×24” ×1/2”/1” | 3200m³/h |
* Customzable Size
Applications:
1. Clean rooms (suitable for use in multilayer filter filtration system)
2. Food processing industry.
3. Pharmaceutical Processing.
4. Aerospace Engineering.
5. Genetic & Biological research.
6. Biohazard Atmosphere.
7. Laminar Flow Workstations.
8. Bio Safe Hoods (Biological Safety Cabinets).
9. Hospital Operating Theaters & Intensive care units.
10. Spray Booth and Paint Room.
11. Electronic Industry.
