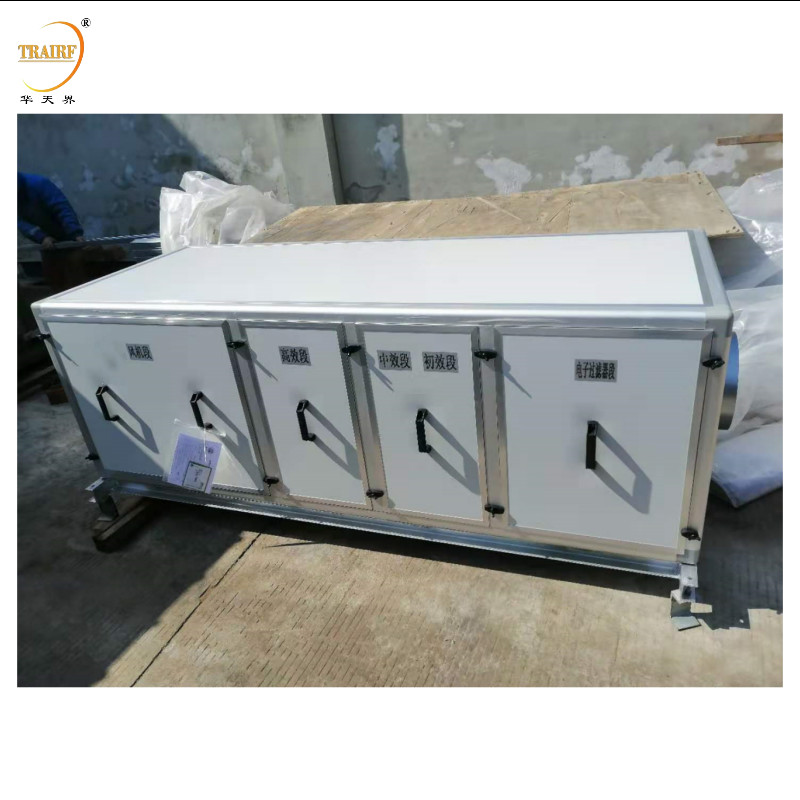

Industrial Air Conditioner with Air Handing Unit Ahu for Air
Conditioning in HVAC
Materials
1. Frame material: reinforced aluminum alloy profile, double-layer
color steel clean board, outer color steel panel or galvanized
board, etc;
2. Inner core material: foam board, extruded plastic board,
glass-magnesium board, etc;
3. Seal: sponge seal;
4. Filtration equipment: primary, medium and high efficiency air
filters;
5. Power source: advanced low-noise centrifugal fan, which can be
equipped with external rotor direct drive (DFX-A series) or belt E
drive fan (DFX-E series).
Features
1. Many varieties, full specifications, air volume, full-pressure
range of options;
2. Equipped with multi-directional air inlet and outlet, the unit
can be installed in ceiling type or floor type, which is convenient
for engineering design.
3. Adopting advanced low-noise centrifugal fan as the power source,
according to different needs, single or multiple parallel use.
4. Inside the air box machine, there can be increased primary,
middle and high efficiency air filtration sections, mufflers,
dampers and other accessories, equipped with an electric control
box, can be controlled remotely.
5. The sponge sealing tape is added between the side panel of the
box and the frame, which is convenient for the removal of the door
panel and also ensures the good airtightness of the box itself.
Product parameters
| Model | Air flow rate(m³/h) | Full pressure | Fan model | Unit power | Supply Voltage |
| TR-FJX-01 | 500 | 205 | TFD7-5F | 0.09-4 | 220 |
| TR-FJX-02 | 1000 | 297 | YFD8-8 | 0.275-4 | 220 |
| TR-FJX-03 | 2000 | 383 | YFD9-7 | 0.35-4 | 220 |
| TR-FJX-04 | 3000 | 190 | YFD10-10 | 0.46-6 | 220 |
| TR-FJX-05 | 5000 | 443 | YFW355 | 1.1-6 | 380 |
| TR-FJX-06 | 10000 | 576 | YFW400 | 3.0-6 | 380 |
The full pressure in the table is the full pressure of the fan, if
the air filter is installed, the resistance of the primary filter
is 40-70Pa, the resistance of the intermediate filter is 80-120Pa,
the resistance of the activated carbon filter is 45-70Pa, and the
resistance of the sub-high efficiency filter is 120-240Pa.
Application
1. Aerospace, electronics, semiconductor, wafer, biopharmaceutical,
hospital, food processing and other high cleanliness occasions.
2. Terminal of air conditioning and ventilation system (terminal
filtration and hot air type high temperature oven and oven).
3. Hospital operating room, hospital, biopharmaceutical,
laboratory, circuit board, microelectronics, optics, LED
photoelectric, QS food processing or purification equipment end
temperature requirements of clean working environment.
FAQ
Q: Are you a Trading Company or really a Manufacturer?
A: We are a manufacturer with two factories, one is main
manufacture filter materials,media, elements, another is main
manufacture all kinds of Air Filters.
Q: Why should we choose your as a trust quality supplier especially
for the first deal?
A: Firstly: We can provide you qualified products as all our
products are passed strictly quality inspection before sent out.
Secondly: Competitive Price provided as raw materials are provided
by our own factory.
Q: Do you have any certification to ensure the quality?
A: ISO9001; CE Certification. Company has advance quality
inspection equipment.
Q: What's your Delivery Way?
A: LCL, 20ft, 40GP, 40HQ, by sea or by air, by express delivery ,by
train (Our Company Nearby QINGBAIJIANG International Railway
Station which line can be arrival Middle Europe directly and only
need to take half month )
Q: What's your delivery date?
A: Normal delivery date is about 7-20 workdays after payment.
