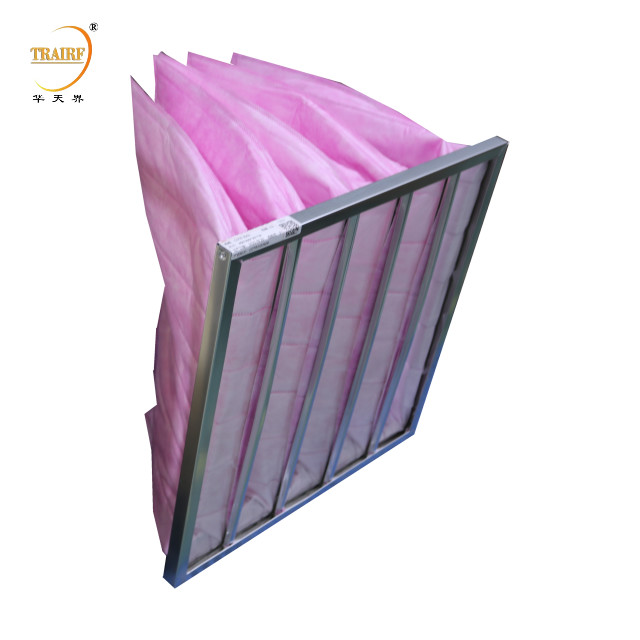

Synthetic Fiber Medium Efficienty Air Filter Pocket Bag
TRAIRF® Pocket Filter Bag Filter F7 is an extended surface air filter designed for most medium and high
efficiency air filtration systems.
The pocket air filter media is composed of 4 layers designed to
meet the various ASHRAE standards. The filter media are
manufactured of Multiple Layers Synthetic Microfiber. The Synthetic
Microfiber build up in non-woven layers to ensure MultiLayer
buildups and eliminate fiber shedding.
TRAIRF® Air Filter Bag are widely used in ventilation and air conditioner system of
laboratory, pharmacy, microelectronic, hospital, food industry etc
which areas requesting a higher degree of air cleanliness.
Efficiency:
Synthetic fiber air filter has an average atmospheric dust spot
efficiency range 45-50%, 60-65%, 80-85% and 90-95% in NBS Test
Method; per ASHRAE 52.2, the efficiency is MERV9, MERV11, MERV12 &
MERV14.
Filter Media:
Fiberglass and Synthetic Fiber filter media are available for
TRAIRF® Medium Filter F5 F6 F7 F8. Synthetic fiber media consist of one layer of spun bound on each
side for strength and stability, one coarse fiber melt-blown layer
for filtration of larger particles and one fine melt-blown layer
for filtration of smaller particles.This media is extremely durable
and non-shedding. Using a variety of materials, the range of
filtration efficiency can be spanned from 45-50% to 90-95% and >
95%
Frame:
Both glass fiber and synthetic fiber filter media Pocket Filter Bag
Filter consists of individual pockets, which are bonded to a
corrosion-resistant header, aluminium alloy and galvanized frame
header are available
Product parameters
| Model | Outside dimensions(mm) | Rated air flow(m³/h) | Initial resistance(Pa) | Efficiency | Model of filter media | Pockets |
| TR-ZXD-P1 | 495*295*500mm
20"×12" ×20" | 1000m³/h | 50-130Pa | 45% F5 65% F6 85% F7 95% F8 98% F9 colorimetric | F5 White F6 Green F7 Pink F8 Yellow F9 Yellow | 5 |
| TR-ZXD-P2 | 495*295*500mm
20"×12" ×20" | 1800m³/h | 5 |
| TR-ZXD-P3 | 595*295*500mm
24"×12" ×20" | 1300m³/h | 6 |
| TR-ZXD-P4 | 595*595*500mm
24"×24" ×20" | 2200m³/h | 6 |
| TR-ZXD-P5 | 495*295*500mm
20"×12" ×24" | 2600m³/h | 8 |
| TR-ZXD-P6 | 495*495*500mm
20"×20" ×24" | 1200m³/h | 5 |
| TR-ZXD-P7 | 495*295*500mm
20"×12" ×24" | 2200m³/h | 5 |
| TR-ZXD-P8 | 595*295*500mm
24"×12" ×24" | 1600m³/h | 6 |
| TR-ZXD-P9 | 595*495*500mm
24"×20" ×24" | 2700m³/h | 6 |
| TR-ZXD-P10 | 595*595*500mm
24"×24" ×24" | 3200m³/h | 8 |
* Customizable size
Product Line
Package
Package: According to filter type, we are provide below package:
* Carton Package
* Wooden Case
* According to your requirement to packing air filter
Delivery Time:
* Sample Order:1-2 days after receive your payment
* Bulk Order:7-15 days in normal
Shipping Way:
* Shipping by Courier for samples or small quantity order or order
which required urgently
* Shipping by Air
* Shipping by Sea for large quantity order or air shipping fee too
high
* Shipping by Train for Europe Marketing
FAQ
Q: What is the international standard for air filter?
A: Euro: Pre (G1---G4), Medium (F5----F9), HEPA (H10--H14), ULPA
(U15--17) American: Pre (Merv1---7), Medium ( Merve8----14), HEPA
(Merv15---19), ULPA (Merv20)
Q: Can you send Free Sample?
A: Yes.We can offer you Free Samples and you just need to pay
express charge. You also can provide your Express Account or asking
your courier to pick up from our factory.
Q: What's your MOQ ?
A: Different standard of MOQ for different goods.
Q: What's your Delivery Way?
A: LCL, 20ft, 40GP, 40HQ, by sea or by air, by express delivery ,by
train (Our Company Nearby QINGBAIJIANG International Railway
Station which line can be arrival Middle Europe directly and only
need to take half month )
Q: What's your delivery date?
A: Normal delivery date is about 7-20 workdays after payment.
Q:What's your payment terms?
A:Total amount <=2000USD, 100% T/T in advance. Total
amount>=2000USD, 30% T/T in advance and 70% balance
beforeshipment. If you have another question, please feel free to
contact us.
