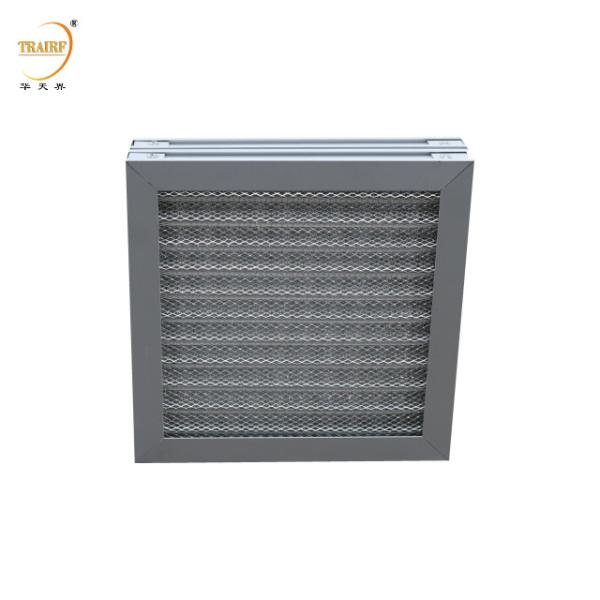

G3 Metal Washable Air Filter Corrugated Aluminum Mesh Air Filter
The primary filter is suitable for the primary filtration of air
conditioning system. It is mainly used for filtering dust particles
above 5μm. The primary filter has three styles: plate type, folding
type and bag type. The outer frame materials include paper frame,
aluminum frame and galvanized iron frame. The filter materials
include non-woven fabric, nylon mesh, activated carbon filter
material, metal hole mesh, etc., and the protective net has
double-sided spray wire mesh and double-sided galvanized wire mesh.
Features:
* Color: sliver
* External Frame: Galvanized frame or aluminum frame
* Cheap price, thin thickness
* Large effective filtration area
* Easy to be installed
* Lower resistance
* Great dust holding capacity
Parameters
| Model | Outside dimensions(mm) | Rated air flow(m³/h) | Initial resistance(Pa) | Efficiency(class) | Model of filter media |
| TR-CX-P1 | 295×295×10/20mm 12”×12” ×1/2”/1” | 800m³/h | 25-50Pa | 40%weight | G2 G3 G4 | Nylon nets Early effect filter cotton Corrugated aluminium nets |
| TR-CX-P2 | 495×295×10/20mm 20”×12” ×1/2”/1” | 1300m³/h |
| TR-CX-P3 | 495×495×10/20mm 20”×20” ×1/2”/1” | 2200m³/h |
| TR-CX-P4 | 595×295×10/20mm 24”×12” ×1/2”/1 | 1600m³/h |
| TR-CX-P5 | 595×495×10/20mm 24”×20” ×1/2”/1” | 2700m³/h |
| TR-CX-P6 | 595×595×10/20mm 24”×24” ×1/2”/1” | 3200m³/h |
* Customizable size
Applications:
The use of air purifying systems is widespread across industries
and residential areas, ranging from Clean-rooms, buildings, food
industry to automobiles.
These systems can be implemented in over ventilation systems,
air-conditioning systems, furnace systems, and much more.
It is evident that air systems are commonplace in areas such as
industry, residential areas, and other locations, and will help to
make our everyday lives and work safer and of higher quality.
Customization:
Preliminary Air Filter - TRAIRF
- Brand Name: TRAIRF
- Place of Origin: China
- Certification: ISO9001
- Minimum Order Quantity: 1 piece
- Price: 7.25-19.36USD
- Packaging Details: carton
- Delivery Time: 4-10 workdays
- Payment Terms: T/T, L/C, D/P
- Supply Ability: 5000 pieces
- Air Flow Rate: 1000 CFM
- Size: Customized Size
- Filter Life: 1-3 Months
- Filter Efficiency: 40%
- Color: Silver
TRAIRF Preliminary Air Filter is the ideal choice for those who
need a reliable, high-performance filter in their air filtration
system. It boasts superior air flow rate of 1000 CFM, and its
filter life can last from 1-3 months. It has a filter efficiency of
40%, and comes in a customized size and silver color. This
preliminary air filter is ISO9001 certified with a minimum order
quantity of 1 piece. Its price ranges from 7.25-19.36USD, and it is
delivered within 4-10 workdays in a carton. Payment terms include
T/T, L/C, and D/P. Its supply ability is 5000 pieces.
