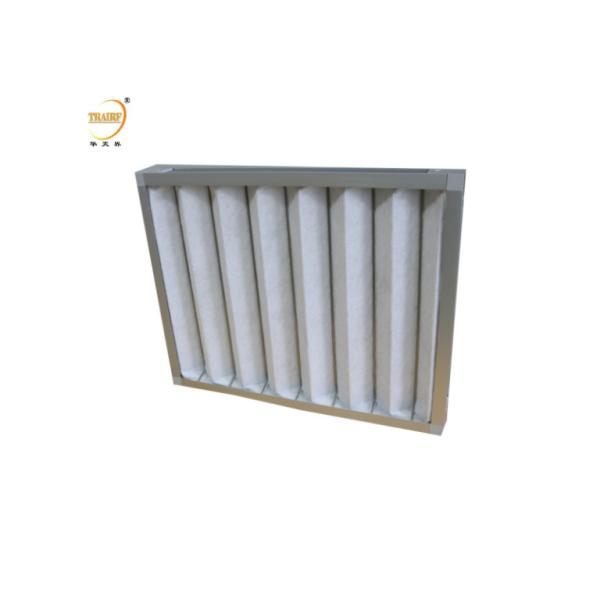

Aluminum Frame Primary Efficiency Coarse G4 Air Filter Pre Washable
Filter
The primary filter is suitable for the primary filtration of air
conditioning system. It is mainly used for filtering dust particles
above 5μm. The primary filter has three styles: plate type, folding
type and bag type. The outer frame materials include paper frame,
aluminum frame and galvanized iron frame. The filter materials
include non-woven fabric, nylon mesh, activated carbon filter
material, metal hole mesh, etc., and the protective net has
double-sided spray wire mesh and double-sided galvanized wire mesh.
Manufacturing technique
Features:
*Color: white
* External Frame: Galvanized frame or aluminum frame
* Cheap price, thin thickness
* Large effective filtration area
* Easy to be installed
* Lower resistance
* Great dust holding capacity
Product parameters
| Model | Outside dimensions(mm) | Ratde air flow(m³/h) | Initial resistance(Pa) | Efficiency(class) | Model of filter media |
| TR-CX-P1 | 295×295×10/20mm 12”×12” ×1/2”/1” | 800m³/h | 25-50Pa | 40% weight | G2 G3 G4 | Nylon nets Early effect filter cotton Corrugated aluminium nets |
| TR-CX-P2 | 495×295×10/20mm 20”×12” ×1/2”/1” | 1300m³/h |
| TR-CX-P3 | 495×495×10/20mm 20”×20” ×1/2”/1” | 2200m³/h |
| TR-CX-P4 | 595×295×10/20mm 24”×12” ×1/2”/1 | 1600m³/h |
| TR-CX-P5 | 595×495×10/20mm 24”×20” ×1/2”/1” | 2700m³/h |
| TR-CX-P6 | 595×595×10/20mm 24”×24” ×1/2”/1” | 3200m³/h |
* Customzable Size
Applications:
1. Clean rooms (suitable for use in multilayer filter filtration
system)
2. Food processing industry.
3. Pharmaceutical Processing.
4. Aerospace Engineering.
5. Genetic & Biological research.
6. Biohazard Atmosphere.
7. Laminar Flow Workstations.
8. Bio Safe Hoods (Biological Safety Cabinets).
9. Hospital Operating Theaters & Intensive care units.
10. Spray Booth and Paint Room.
11. Electronic Industry.
FAQ
Q: Are you a Trading Company or really a Manufacturer?
A: We are a manufacturer with two factories, one is main
manufacture filter materials,media, elements, another is main
manufacture all kinds of Air Filters.
Q: Why should we choose your as a trust quality supplier especially
for the first deal?
A: Firstly: We can provide you qualified products as all our
products are passed strictly quality inspection before sent out.
B: Secondly: Competitive Price provided as raw materials are
provided by our own factory.
Q: Do you have any certification to ensure the quality?
A: ISO9001; CE Certification. Company has advance quality
inspection equipment.
Q: What is the international standard for air filter?
A: Euro: Pre (G1---G4), Medium (F5----F9), HEPA (H10--H14), ULPA
(U15--17)
B: American: Pre (Merv1---7), Medium ( Merve8----14), HEPA
(Merv15---19), ULPA (Merv20)
Q: Can you send Free Sample?
A: Yes.We can offer you Free Samples and you just need to pay
express charge. You also can provide your Express Account or asking
your courier to pick up from our factory.
Q: What’s your MOQ ?
A: Different standard of MOQ for different goods.
Q: What’s your Delivery Way?
A: LCL, 20ft, 40GP, 40HQ, by sea or by air, by express delivery ,by
train (Our Company Nearby QINGBAIJIANG International Railway
Station which line can be arrival Middle Europe directly and only
need to take half month )
Q: What’s your delivery date?
A: Normal delivery date is about 7-20 workdays after payment.
Q:What’s your payment terms?
A:Total amount <=2000USD, 100% T/T in advance. Total
amount>=2000USD, 30% T/T in advance and 70% balance
beforeshipment. If you have another question, please feel free to
contact us.
