Bag Medium Synthetic Fiber FilterF7 Filter Fiberglass Pocket Air
Filter

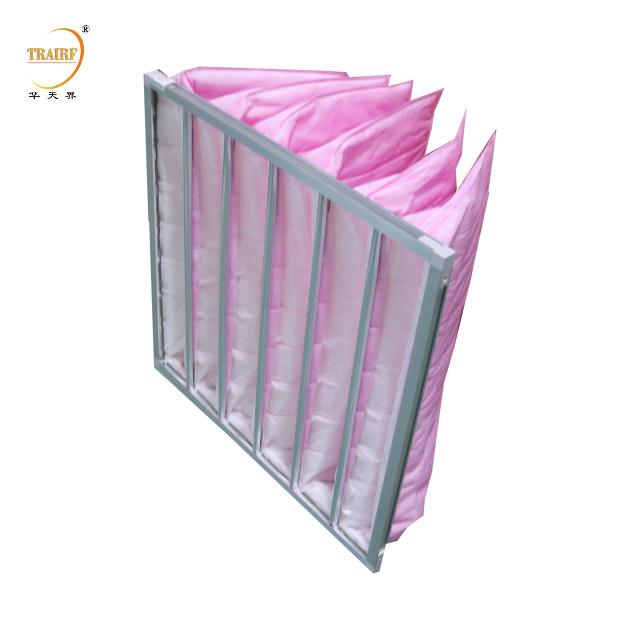

TRAIRF® Pocket Filter Bag Filter F7 is an extended surface air
filter designed for most medium and high efficiency air filtration
systems.
The pocket air filter media is composed of 4 layers designed to
meet the various ASHRAE standards. The filter media are
manufactured of Multiple Layers Synthetic Microfiber. The Synthetic
Microfiber build up in non-woven layers to ensure MultiLayer
buildups and eliminate fiber shedding.
TRAIRF® Air Filter Bag are widely used in ventilation and air
conditioner system of laboratory, pharmacy, microelectronic,
hospital, food industry etc which areas requesting a higher degree
of air cleanliness.
Product parameters
| Model | Outside dimensions(m) | Rated air flow(m³/h) | Initial resistacne(Pa) | Efficiency | Model of filter media | Pockets |
| TR--ZXD-P1 | 495*295*500mm
20"×12" ×20" | 1000m³/h | 50-130Pa | 45% F5 65% F6 85% F7 95% F8 98% F9 colorimetric | F5 White F6 Green F7 Pink F8 Yellow F9 Yellow | 5 |
| TR--ZXD-P2 | 495*295*500mm
20"×12" ×20" | 1800m³/h | 5 |
| TR--ZXD-P3 | 595*295*500mm
24"×12" ×20" | 1300m³/h | 6 |
| TR--ZXD-P4 | 595*595*500mm
24"×24" ×20" | 2200m³/h | 6 |
| TR--ZXD-P5 | 495*295*500mm 20"×12" ×24" | 2600m³/h | 8 |
| TR--ZXD-P6 | 495*495*500mm
20"×20" ×24" | 1200m³/h | 5 |
| TR--ZXD-P7 | 495*295*500mm
20"×12" ×24" | 2200m³/h | 5 |
| TR--ZXD-P8 | 595*295*500mm
24"×12" ×24" | 1600m³/h | 6 |
| TR--ZXD-P9 | 595*495*500mm
24"×20" ×24" | 2700m³/h | 6 |
| TR--ZXD-P10 | 595*595*500mm
24"×24" ×24" | 3200m³/h | 8 |
* Customizable size
Applications
1. Clean rooms (suitable for use in multilayer filter filtration
system)
2. Food processing industry.
3. Pharmaceutical Processing.
4. Aerospace Engineering.
5. Genetic & Biological research.
6. Biohazard Atmosphere.
7. Laminar Flow Workstations.
8. Bio Safe Hoods (Biological Safety Cabinets).
9. Hospital Operating Theaters & Intensive care units.
10. Spray Booth and Paint Room.
11. Electronic Industry.
FAQ
Q: Are you a Trading Company or really a Manufacturer?
A: We are a manufacturer with two factories, one is main
manufacture filter materials,media, elements, another is main
manufacture all kinds of Air Filters.
Q: Why should we choose your as a trust quality supplier especially
for the first deal?
A: Firstly: We can provide you qualified products as all our
products are passed strictly quality inspection before sent out.
B:Secondly: Competitive Price provided as raw materials are
provided by our own factory.
Q: Do you have any certification to ensure the quality?
A: ISO9001; CE Certification. Company has advance quality
inspection equipment.
Q: What is the international standard for air filter?
A: Euro: Pre (G1---G4), Medium (F5----F9), HEPA (H10--H14), ULPA
(U15--17)
B: American: Pre (Merv1---7), Medium ( Merve8----14), HEPA
(Merv15---19), ULPA (Merv20)
Q: Can you send Free Sample?
A: Yes.We can offer you Free Samples and you just need to pay
express charge. You also can provide your Express Account or asking
your courier to pick up from our factory.
Q: What’s your MOQ ?
A: Different standard of MOQ for different goods.
Q: What’s your Delivery Way?
A: LCL, 20ft, 40GP, 40HQ, by sea or by air, by express delivery ,by
train (Our Company Nearby QINGBAIJIANG International Railway
Station which line can be arrival Middle Europe directly and only
need to take half month )
Q: What’s your delivery date?
A: Normal delivery date is about 7-20 workdays after payment.
Q:What’s your payment terms?
A:Total amount <=2000USD, 100% T/T in advance. Total
amount>=2000USD, 30% T/T in advance and 70% balance
beforeshipment. If you have another question, please feel free to
contact us.
